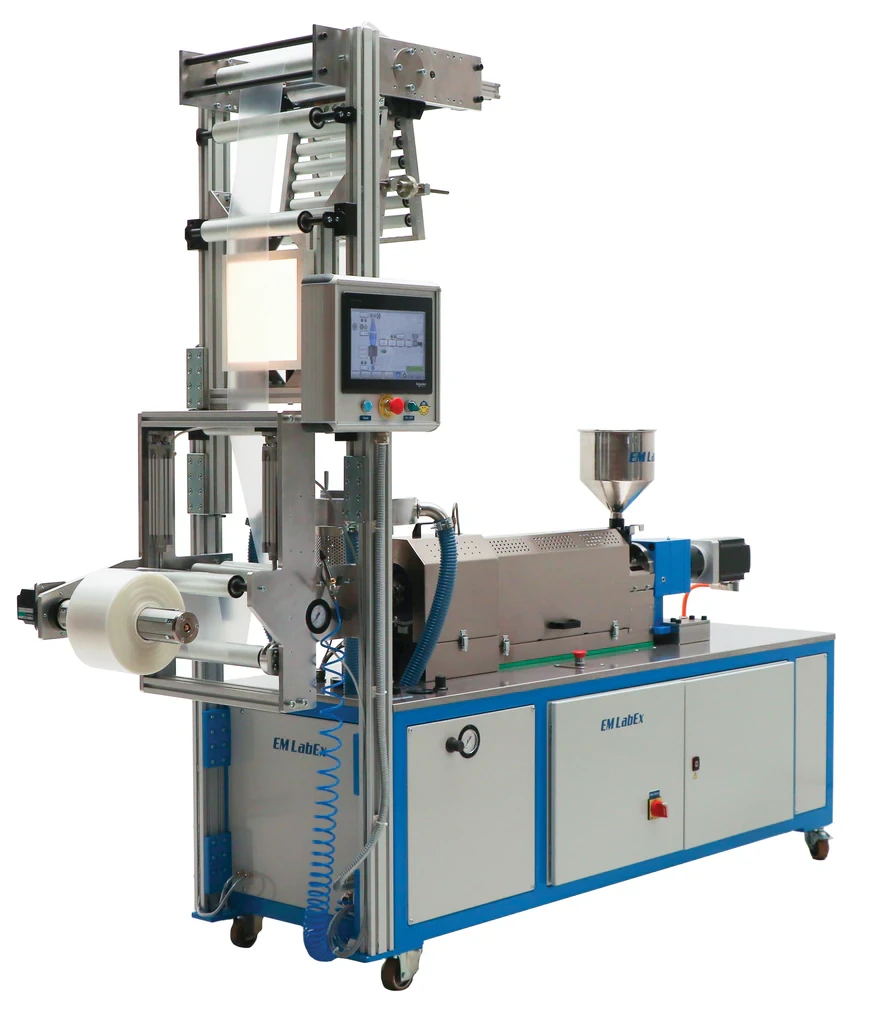

Mono Layer Laboratory Extruder
One extruder, one material stream. The simplest and most affordable LabEx line for testing and teaching.
See detailsLabEx ABA · Two Extruder Coextrusion
ABA Laboratory Extruder for ABA Blown Film R&D
The LabEx ABA is a compact coextrusion line that produces three layer ABA blown film with only two extruders. One extruder feeds both outer skins through a flow splitter, while the second feeds the core. This is an economical way to test skin and core structures with recycled or lower cost material inside.
LabEx ABA views
2 × 25 mmextruder screws, from 18 to 30 mm available
18 zonesPLC controlled heating
Ø25 to 70 mmdie inserts (Ø40 standard)
50 to 300 mmfilm width
1 to 120 rpmconstant screw speed
How ABA works
Three layers, two extruders
The ABA layout gives you a skin, core and skin film structure while keeping the machine compact and affordable.

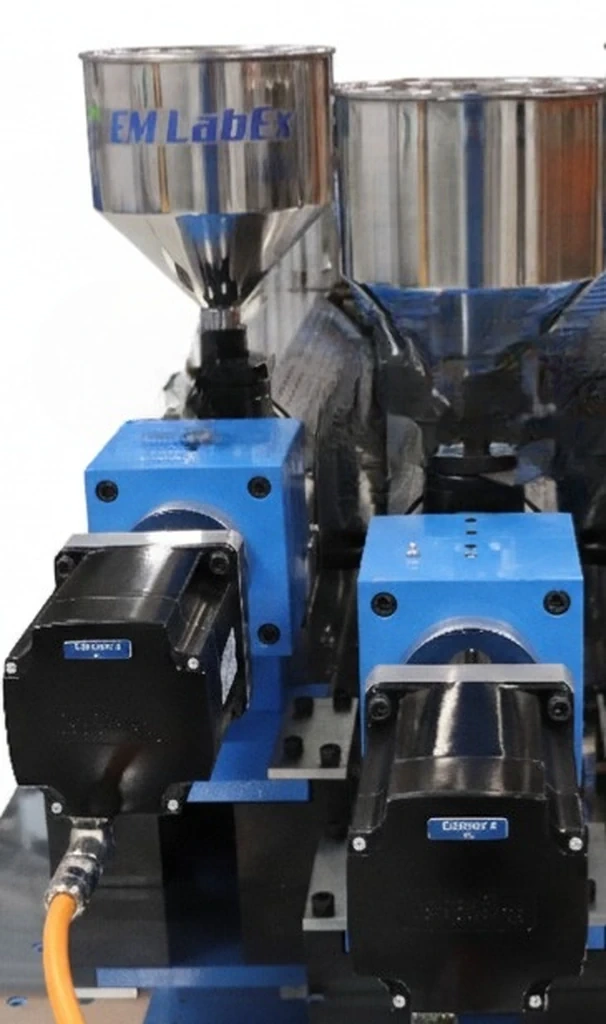

Extruder 1 feeds the two outer A layers through a flow splitter into two concentric outer channels. Extruder 2 feeds the central B layer. A compact manifold keeps the flow balanced for stable three layer bubbles. Use the same material in both skins, with different colour or additive levels if required, and a different material in the core.
This is the practical, lower cost route to three layer film: place recycled or lower cost material in the protected core, while maintaining quality, colour, slip or antiblock in the skins.
Layer A: outer skinfrom Extruder 1 (colour, slip, antiblock)
↓ flow splitter from Extruder 1 ↓
Layer B: corefrom Extruder 2 (recycled or lower cost material)
↑ Extruder 1 also feeds the lower skin ↑
Layer A: outer skinfrom Extruder 1
Highlights
Why choose the ABA line
A focused coextrusion tool for skin and core development and cost driven recycled content trials.
Recycled or cheaper core
Place recycled, filled or lower cost material in the protected B core while the A skins provide the required surface quality.
Skins for colour and effects
Use the A layers for colour, slip, antiblock or a higher recycled content on the surface, testing skin recipes without touching the core.
Economical route to 3 layers
Three layer film from only two extruders, with a lower investment than a full three extruder coextrusion line.
Low material use, quick changeovers
Simulate real production with small quantities and fast recipe changes, ideal for R&D laboratories and pilot lines.
Table top or mobile modules
The extruders can be supplied as table top units or as stand alone modules on a mobile frame to suit your laboratory.
European build quality
Nitrided steel screws and barrels, a precision ABA die head and Schneider Electric Green Premium PLC, HMI and inverters.
Specifications
Main technical specifications
LabEx ABA two extruder laboratory blown film line, grouped by machine section.
- Extruder screwsTwo complete screw & barrel sets, 25 mm diameter, L/D 28:1 (from 18 to 30 mm available). All around versatile barrier screws with integrated mixing section for good melting, stable throughput and improved dispersion. For virgin, recycled and bio based PE.
- BarrelsNitrided steel barrels, available with smooth or grooved feed zone. Built for durability and long service life.

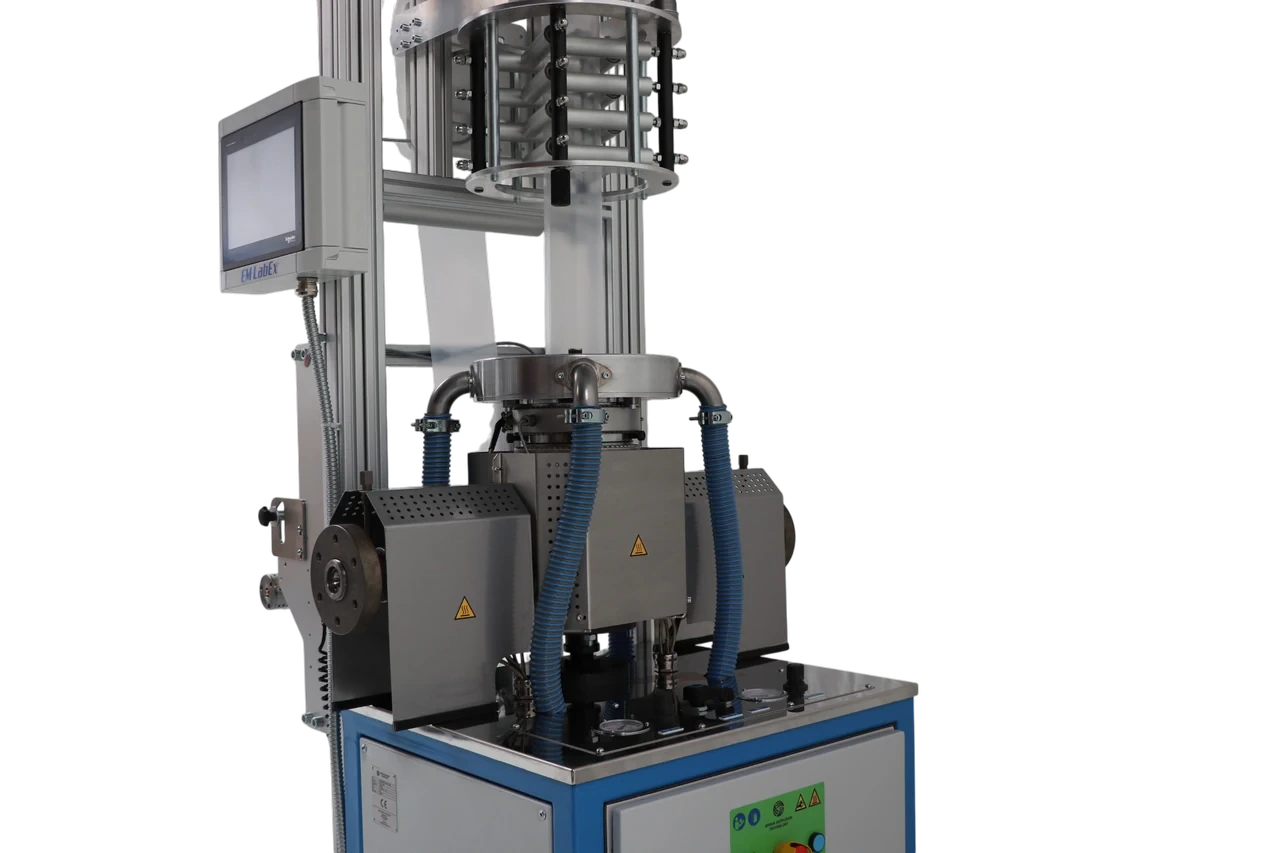

- Die headABA coextrusion die head in PM 300 steel (DIN 1.2379), hard chrome or PVD treated. Two outer A layers fed from one extruder via a flow splitter; central B layer from the second. Die inserts Ø25 to 70 mm; Ø40 mm standard.
- Temperature controlCeramic heater bands, 18 heating zones, PLC controlled.

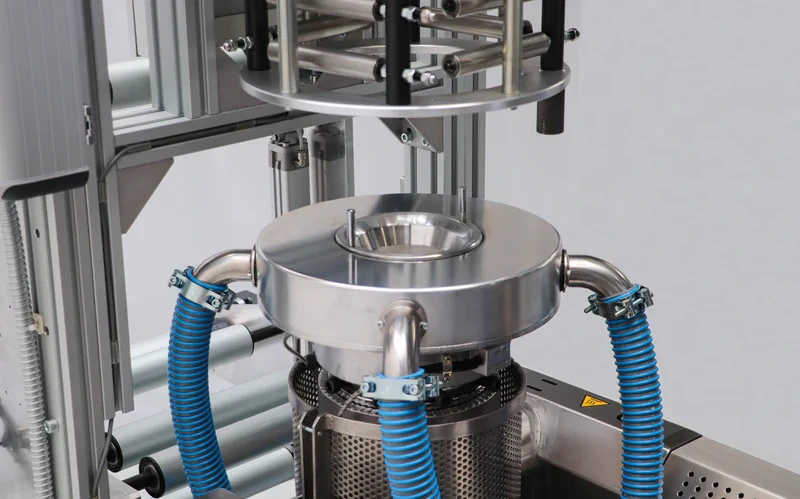

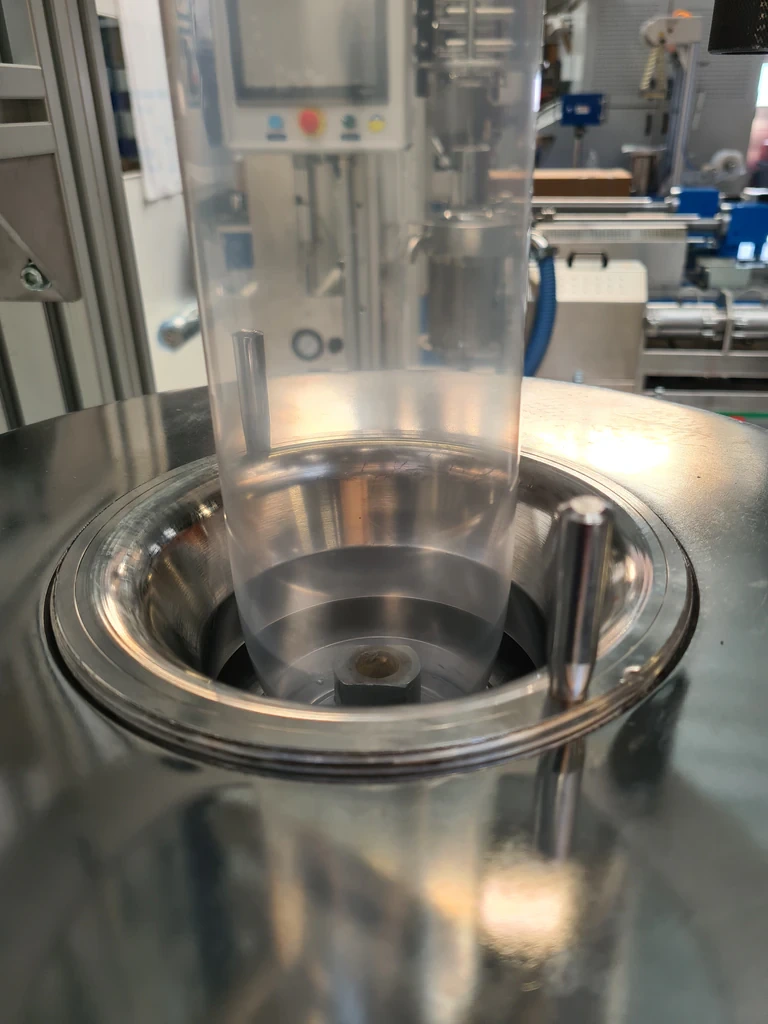

- Air ringHigh efficiency air ring for uniform 360° bubble cooling with adjustable airflow. Film widths 50 to 300 mm.
- Calibrating basketAdjustable arms and rollers for precise bubble stabilisation.
- Collapsing and A frameCollapsing frame and A frame with rollers for gentle film guidance and extra cooling.
- Take off and winderTake off with nip rollers and precise speed/tension control; non contact winder with AC inverter control and air expanding shaft. Contact and double shaft winders available.

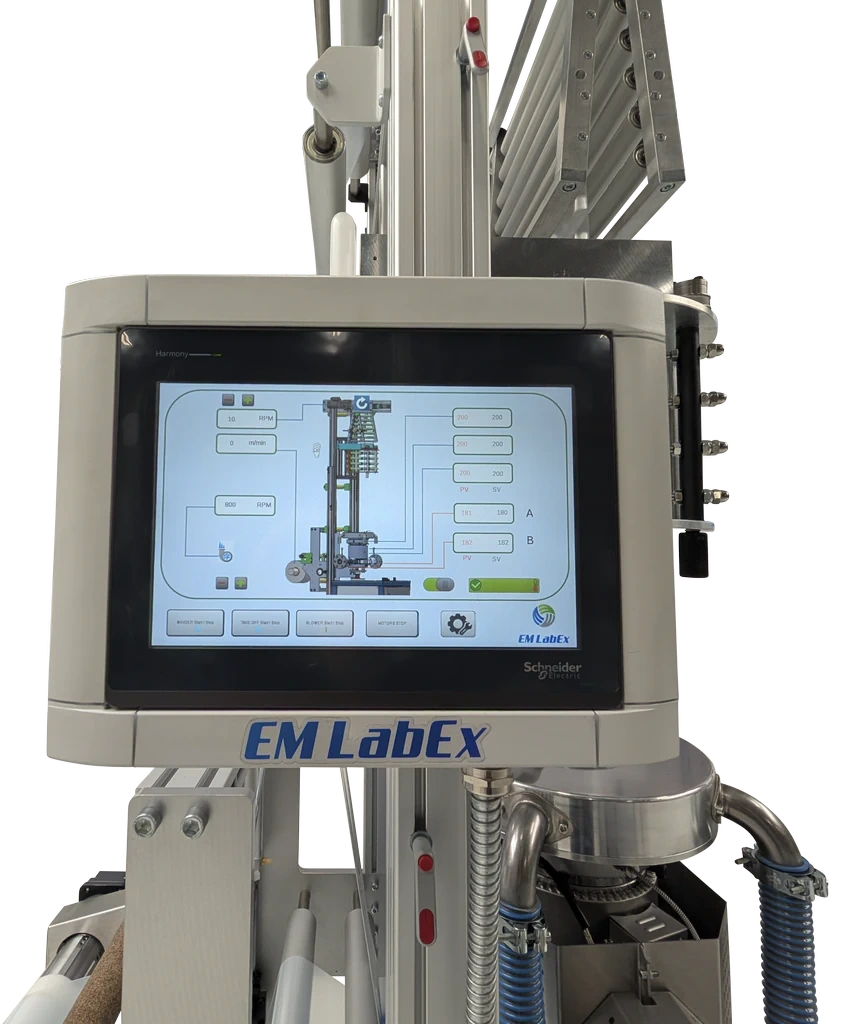

- ControlElectrical control cabinet with Schneider Electric PLC/HMI touchscreen for temperature, speed and safety management of both extruders.
- ElectricsMains 3 × 400 V AC, 50 Hz; control voltage 24 V DC. Other mains voltage on request.
- Standards & componentsIEC / DIN. Schneider Electric Green Premium PLC, HMI and inverters.
- Optional equipmentScreen changers, pressure sensors, high capacity hopper loaders, gravimetric feeding systems, inspection light panels, defect visualisation camera system.
Built in Europe, designed for sustainability.
Manufactured in Denmark with durable, serviceable components and reliable European electrical parts, designed for a long service life.
Materials
Materials you can test
Run the same material in both skins, with different colour or additive levels, and a different material in the core.
LDPE
LLDPE
HDPE
PP
PA
EVOH (test blends)
Recycled PE (PCR / PIR)
Bio based polymers
Biodegradable & compostable compounds
Masterbatch & additives
For full three material structures with an independent skin, inside and outside layer, choose the 3 layer or 5 layer LabEx line.
Typical uses
What the ABA line is used for
Focused on skin and core development and cost driven recycled content work.
Skin and core R&D
Develop three layer structures with outer skins for colour, slip/antiblock or recycled content, and a modified core.
Recycled content trials
Increase recycled material in the protected core while keeping processability and surface quality in the skins.
Customer samples
Produce small batches of coextruded ABA film for customer samples and product trials.
Training and teaching
Show coextrusion principles clearly, with low material consumption, in schools and training centres.
Interested in the LabEx ABA?
Tell us your skin and core materials and what you want to develop, and we will prepare a quotation for the right ABA configuration. Ask us also for a payback calculation based on your own trial costs.
More LabEx models
Related machines

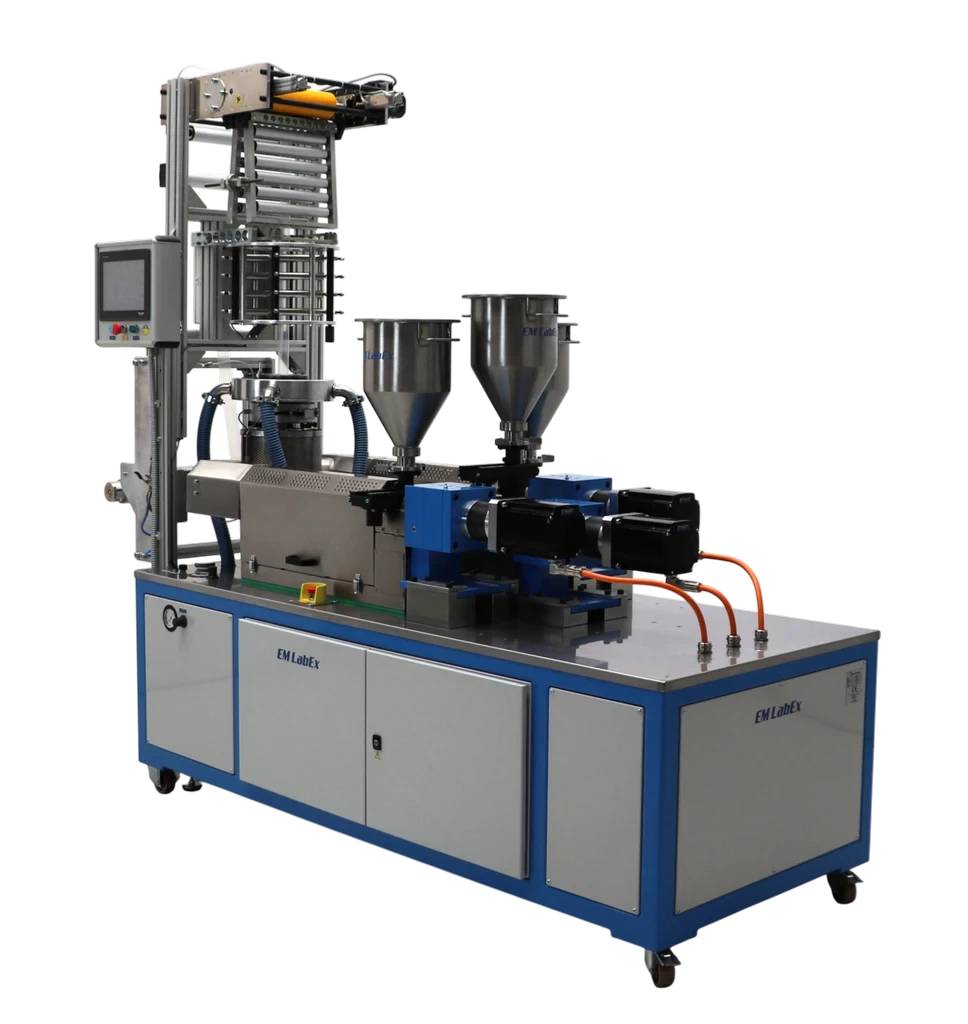

3 Layer Laboratory Extruder
Three independent extruders for full control of every layer, including barrier, sealing and multilayer packaging.
See details

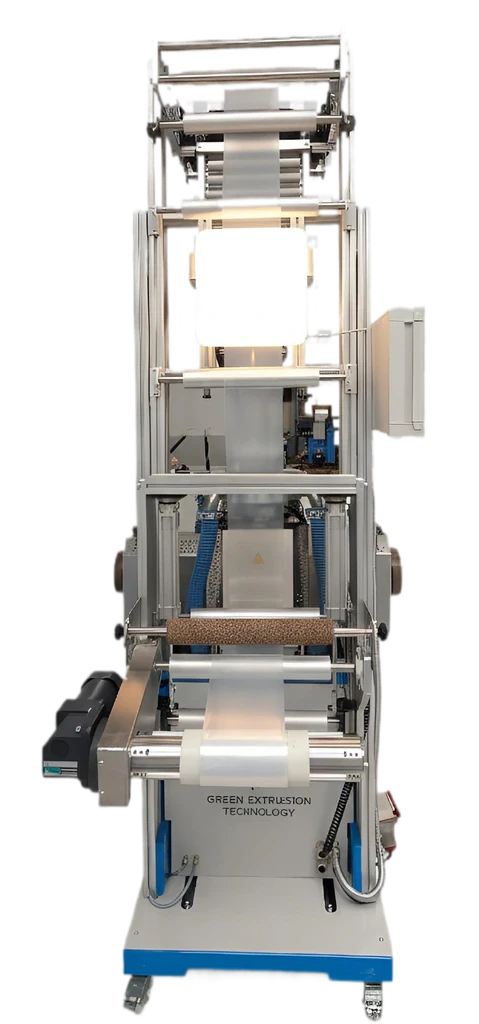

Blown Film Units
